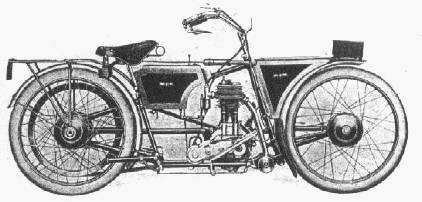

James. 1910. 3½ h.p. Safety Model 1
|
|
James Motorcycles Information Website James. 1910. 3½ h.p. Safety Model 1 |
|||
|
Homepage
|
Pre war
index
|
1910 models
|
1911 Safety
Model 1 |
|
 |
|
|
Chassis - special design as
illustrated Wheels and tyres 26" x 2¼" mounted on live axles, front fitted with shock absorber Patented hubs and hub centre steering system Internal expansion band brakes Belt rim built onto separate hub James 3½ h.p. engine. 86mm x 96mm (557cc) Brown & Barlow carburettor with No.32 jet Handlebar control for ignition and carburettor Free engine pulley on rear wheel Interchangeable wheels Single sided hubs allowing puncture repair whilst wheel remain on the hubs Bosch high tension magneto, gear driven in aluminium case |
Capacity: Petrol 150 miles. Oil 250 miles Lubrication by sight feed pump on oil tank Starting by handle on back wheel Automatic stand, 10" long and self-locking in both positions Saddle suspended on spiral buffer springs with anti vibratory check spring 1" V rubber drive belt on deep section variable pulley. Highest gear 4 to1, lowest gear 6 to1 Black enamel finish. Wheel black, green lined. Tanks aluminium, with green panels, lined black Price £48 |
