James. 1911. 3½ h.p. Safety Model 1 & 2
|
|
James Motorcycles Information Website James. 1911. 3½ h.p. Safety Model 1 & 2 |
|||
|
Homepage
|
Pre war
index
|
1911 models
|
1911 Safety
Model 1 & 2 |
|
 |
|
|

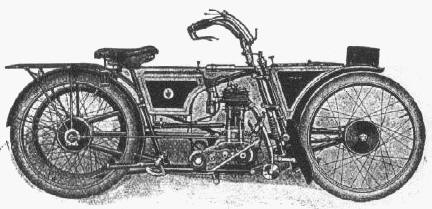

Chassis - special design as
illustrated Wheels and tyres 26" x 2¼" mounted on live axles, front fitted with shock absorber Patented hubs and hub centre steering system Internal expansion band brakes Belt rim separately mounted on live axle James 3½ h.p. engine. 86mm x 96mm (557cc) Brown & Barlow carburettor Handlebar control for ignition and carburettor Multiple disc clutch in belt pulley on rear wheel-(Model number 2 only) Interchangeable wheels Single sided hubs allowing puncture repair whilst wheel remain on the hubs Bosch high tension magneto, gear driven in aluminium case |
Capacity: Petrol 150 miles. Oil 250 miles Lubrication by sight feed pump on oil tank Starting by handle on back wheel Automatic stand, 10" long and self-locking in both positions Saddle suspended on spiral buffer springs with anti vibratory check spring 1" V rubber drive belt on deep section variable pulley. Highest gear 4 to1, lowest gear 6 to1 Black enamel finish. Wheel black, green lined. Tanks aluminium (paint ?), with green panels, lined black Price £60 for Model No.1 £63 for Model No. 2 with free engine clutch It does not mention whether the Model No. 1 has a leather cone clutch as in the previous year - or no clutch at all. |
