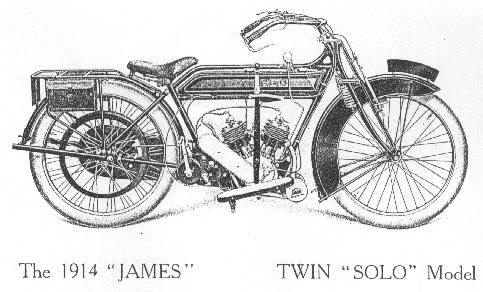

James. 1914. 500cc.  Model 7

Homepage  Pre war index 1914. 500cc models James Model 7
500cc James engine (3½ h.p.)
64mm x 77mm - 50° V-twin
26" x 2⅜" wheels and tyres (beaded edge)
Front & rear rim brakes
High-tension magneto
Brown & Barlow, AMAC or Senspray carburettor
1½ gallon tank with 1 quart oil
Sight drip oil feed with auxiliary hand-pump
Front & rear stands
Lycett pan saddle 		Chain drive by ⅝" x ¼" Renold chain
3 speed gearbox with clutch (pedal control option)
Footboards
Spring drive in rear hub
Complete chain case
Carrier with metal sided, leather-faced toolbags
Frame enamelled black.
Wheel rims nickel plated with black centres, red lined
Tank enamelled brown with red & gold lines
