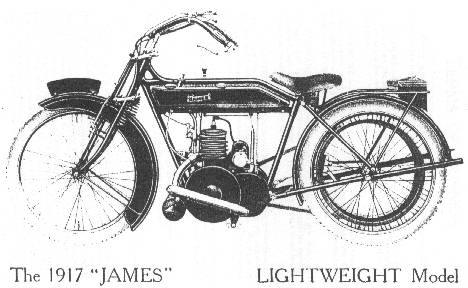

James Model 8
|
|
 |
|
|
226cc James two stroke engine 64mm x
70mm 24" or 26" x 2" wheels & tyres (beaded edge) Front & rear rim brakes Rear stand Carrier Two speed gearbox. 5½:1 & 10:1 ratios Direct force feed lubrication to big end from hand pump. Also petroil mix in tank Chain primary drive ¾" belt final drive on 5½" pulley |
High tension magneto Carburettor of choice Chain case for primary drive 1 gallon petrol tank with 1 quart oil compartment Lycett saddle Black enamelled frame Tank enamelled in brown with red & gold lines Wheel rims nickel plated with black centres, red lined Selling price - 35 guineas |
