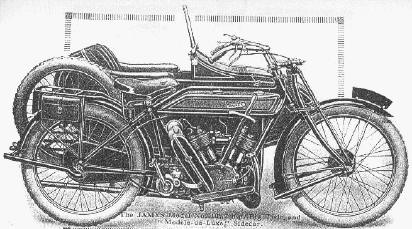

James. 1922. 749cc.  Model 10

Homepage  Pre war index James Model 10
749cc James V-twin engine
73mm x 89.5mm.  50 Side valve V-twin
28" x 3" wheels and tyres
Biflex forks
Front band brake
Rear internal expanding band brake
Front & rear stands
Carrier with armoured pannier bags
Special wide 'D' section mudguards
Automatic sight feed oil lubrication with auxiliary hand pump

All chain drive
Full chain enclosure - cast aluminium !
James clutch with left hand & right foot control
James three speed gearbox with kickstarter
High tension magneto
'Approved type' carburettor
2 gallon tank with 2 quarts oil compartment
Pan seat
Black frame.  Tank enamelled 'James' brown, lined red and gold
Wheel rims enamelled black
The combination is 7' 10" long and 5' 1" wide
As specified above - 125
With Modele de Luxe sidecar - 160
