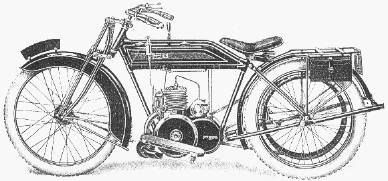

James. 1922. 240cc.  Model 8

Homepage  Pre war index James Model 8
240cc James two stroke engine 66mm x 70mm
26" x  2¼" wheels & tyres (beaded edge)
Front & rear rim brakes
Rear stand
Carrier with armoured toolbags
Two speed gearbox.  5½:1 & 10½:1 ratios
Direct force feed lubrication to big end from hand pump.  Also petroil mix in tank
Chain primary drive
 ¾" belt final drive on 5½" pulley
High tension magneto
'Approved type' carburettor
Chain case for primary drive
1½ gallon petrol tank with 1½ quarts oil compartment
James pan saddle
Black enamelled frame
Tank enamelled in brown with red & gold lines
Wheel rims enamelled black
Valanced mudguards
Selling price - £55
The model 8a was also available at £60 with clutch and kickstarter - 6:1 & 11:1 ratios
