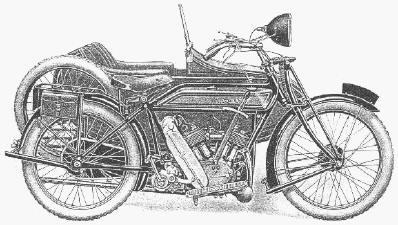

James. 1923. 749cc.  Model 10

Homepage  Pre war index James Model 10
749cc James V-twin engine
73mm x 89.5mm.  50 Side valve V-twin
28" x 3" wheels and tyres
Biflex forks
Front band brake
Rear internal expanding band brake
Both brakes asbestos lined
Front & rear stands
Carrier with armoured pannier bags
Special wide 'D' section mudguards
Automatic sight feed oil lubrication with auxiliary hand pump

All chain drive
Full chain enclosure - cast aluminium !
High tension magneto
James clutch with left hand & right foot control
James three speed gearbox with kickstarter
Footboards, rubber covered
'Approved type' carburettor
2 gallon tank with 2 quarts oil compartment
Pan seat
Black frame.  Tank enamelled 'James' brown (2 shades), lined red and gold
Parts subject to friction nickel plated - all other parts, including wheels, special rust proof black oxidized finish

The combination is 7' 10" long and 5' 1" wide
As specified above - 95
With de Luxe sidecar - 125
