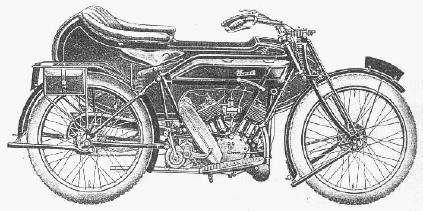

James. 1924. 749cc.  Model 10a

Homepage  Pre war index 1924. 749cc models James Model 10a
749cc James V-twin engine
73mm x 89.5mm.  50 Side valve V-twin
28" x 3" wheels and tyres
Biflex forks
Front band brake
Rear internal expanding band brake
Both brakes asbestos lined
Front & rear stands
Carrier with armoured pannier bags
Special wide 'D' section mudguards
Semi-automatic sight feed oil lubrication with auxiliary hand pump

All chain drive
Light, quickly detachable chain guards over both chains
High tension magneto
James clutch with right foot control
James three speed gearbox with kickstarter
Footboards, rubber covered
'Approved type' carburettor
2 gallon tank with 2 quarts oil compartment
Pan seat
Black frame.  Tank enamelled 'James' brown (2 shades), lined red and gold
Parts subject to friction nickel plated - all other parts, including wheels, special rust proof black oxidized finish

The combination is 7' 10" long and 5' 1" wide
As specified above solo - 75
With Standard sidecar - 95
