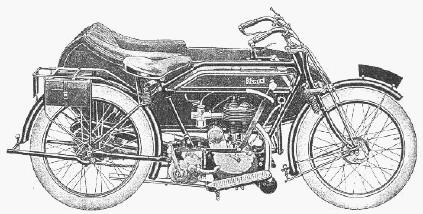

James Model 16
|
|
 |
|
|
600cc
James 4½ h.p. engine 86mm x 103mm 26" x 3" wheels and tyres Powerful internal band front brake - hand applied Large diameter rear internal expanding band brake - pedal operated Front & rear stands Footboards - rubber covered Tubular carrier with armoured pannier bag(s) Special wide 'D' section mudguards Semi-automatic sight drip feed lubrication with auxiliary hand pump 'Approved type' carburettor Pan saddle All chain drive |
Shock absorber fitted to engine sprocket Light Q.D. chain guards James three speed gearbox, clutch and kickstarter. Ratios 5.5, 9.68 & 18.42:1 (Solo ratios 5.17, 9.1 & 17.3:1) High tension magneto Back enamel finish. Tank enamelled in 'James' brown (two shades) lined red and gold Parts subject to friction are nickel plated. All other parts, including wheel have special black oxidized finish Price solo £65. With Standard sidecar £85 |
