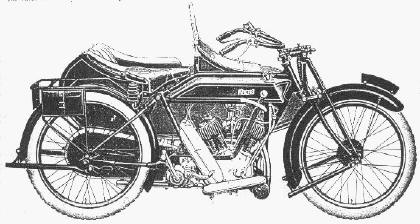

James. 1926. 749cc.  Model 10

Homepage  Pre war index James Model 10
749cc James V-twin engine
73mm x 89.5mm.  50 Side valve V-twin
28" x 3" wheels and tyres (Interchangeable)
Biflex forks
Front &rear internal hub brakes
Touring handlebar
Front & rear stands
Carrier with armoured pannier bags
Special wide 'D' section mudguards
Mechanical pump with adjustable sight drip feed
All chain drive
Full chain enclosure - cast aluminium !
High tension magneto
AMAC or Mills carburettor (optional)
James clutch with left hand & right foot control
James three speed gearbox with kickstarter
Footboards, rubber covered
2 gallon tank with gallon oil compartment
Pan seat
Black frame.  Tank enamelled 'James' brown (2 shades), lined red and gold
Parts subject to friction nickel plated - all other parts, including wheels, special rust proof black oxidized finish

The combination is 7' 10" long and 5' 1" wide
As specified above solo- 80
With de Luxe sidecar - 103
