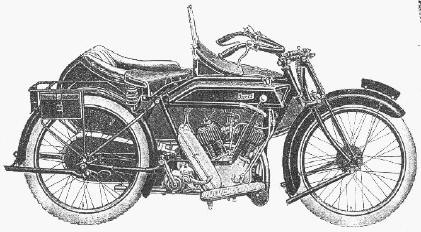

James. 1927. 749cc. Model 10
|
|
James Motorcycles Information Website James. 1927. 749cc. Model 10 |
||
|
Homepage
|
Pre war
index
|
James Model 10
|
|
 |
|
|
749cc James
V-twin engine 73mm x 89.5mm. 50° Side valve V-twin 28" x 3" wheels and tyres Biflex forks Front & rear internal expanding brakes Front & rear stands Carrier with armoured pannier bags Special wide 'D' section mudguards Mechanical oil pump with adjustable sight feed All chain drive Full chain enclosure - cast aluminium ! High tension magneto Footboards, rubber covered AMAC or Villiers carburettor (optional) |
James clutch with left hand & right
foot control James three speed gearbox with kickstarter Ratios 5.37, 9.46 & 18 :1 2 gallon tank with 2 quarts oil compartment Terry's flexible saddle Black frame. Tank enamelled 'James' brown (2 shades), lined red and gold Parts subject to friction nickel plated - all other parts, including wheels, special rust proof black oxidized finish The combination is 7' 10" long and 5' 1" wide As specified above - £80 With de Luxe sidecar - £103 Lucas Magdyno (Combination) £11 |
